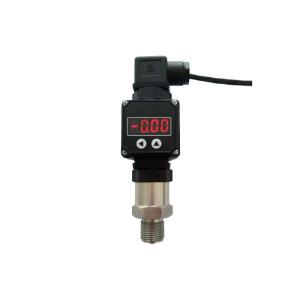

High Accuracy 4-20ma Smart Pressure Transmitter With Adjustable LED Display
WNK805 Series compact pressure transmitter has excellent reliability,practicability,flexibility and diversity,widely applied in aerospace,petroleum,chemical industry,electricity and water conservancy, industrial process, pressure measurement and control.
This transmitter features integrated construction, rigid and robust, high measuring accuracy, good long term stability, and is suitable for pressure measurement in general industry applications.
Features
Specifications
|
Applicable media
|
Liquid, Gas, Steam
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
|
|
Pressure range
|
0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
|
|
Output signals
|
4~20mA, 1-5V for optional
|
|
Accuracy
|
0.2, 0.5
|
|
Stability
|
±0.25% FS/year
|
|
Zero drift
|
50% of full range span.
|
|
Max overload
|
200% of sensor range
|
|
Display
|
LED (Optional)
|
|
Housing material
|
304 stainless steel
|
|
Mechanical connection
|
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
|
|
|
Non-explosion: 10.5~45V DC
|
|
EEX ia:10.5～30 V DC
|
|
|
Ambient temperature
|
－40～85℃
|
|
Process temperature
|
－40～85℃
|
